The Knuckle joint is one of the commonly used tools for coiled tubing operation, to achieve the deflection of the tool at a certain angle.

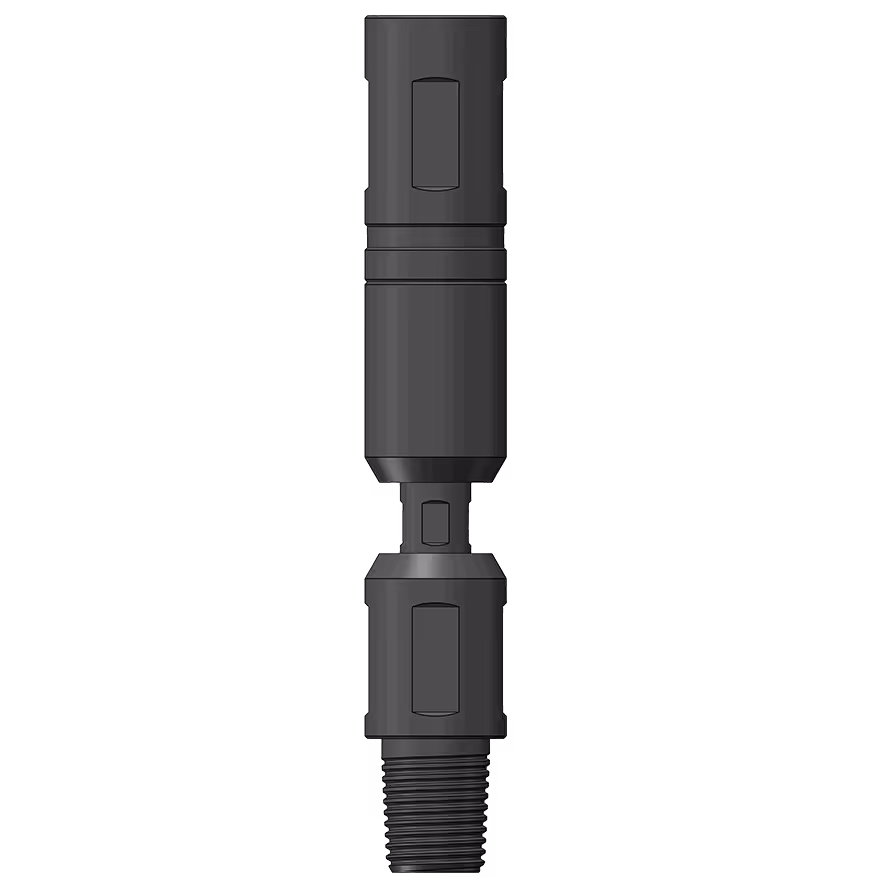

Knuckle Joint

FEATURES & BENEFITS:

·Full 360° rotation/15° angular deviation;

·Multiple ball and socket joints for greater
angle deflection;

·Torsional and Torque thru forms are available.

REQUEST A QUOTE

The knuckle joint, when incorporated between the jars and the manipulation tool, provides additional flexibility in the tool string. This flexibility is often
necessary when the bore of the hole is restricted and/or highly deviated.

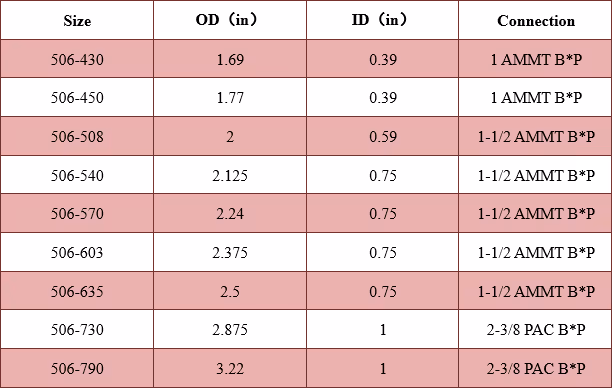

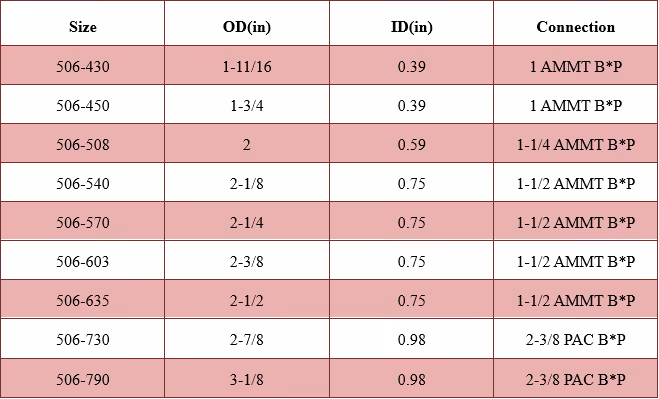

TECHNICAL DATA

Knuckle Joint Technical Data Excel
