The Venturi junk basket is a tool used to retrieve junk and debris from the wellbore. Using the principle of jet pump to achieve self-priming and salvage of fallen objects.

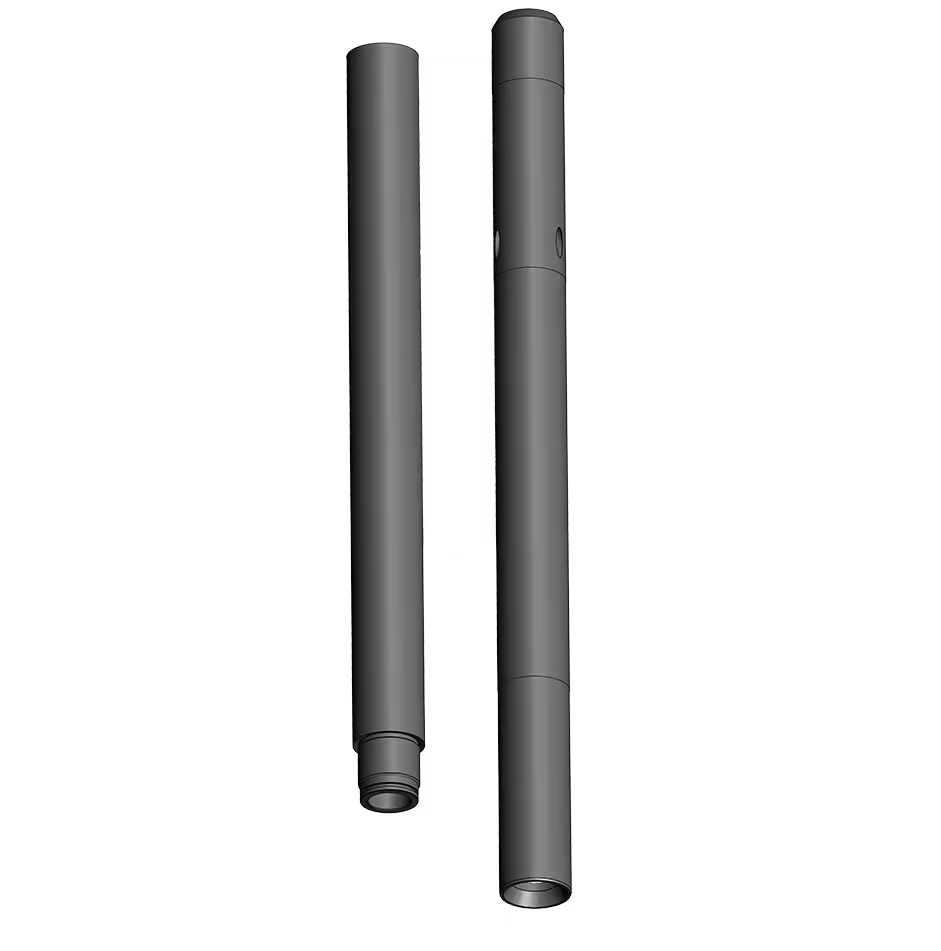

Venturi Junk Basket

FEATURES & BENEFITS:

·Nozzle is adjustable and self-suction force can be preset on the ground;

·The extension cylinder can be configured to increase the salvage volume;

·The bottom sets a flap structure to prevent salvage from falling into the well again.

REQUEST A QUOTE

The Venturi junk basket is a tool used to retrieve junk and debris from the wellbore. When fluid is pumped through the string of the coiled tubing and out through the nozzles in the Venturi chamber, a vacuum is created. Fluid is sucked from the bottom of the tool to exit back through the Venturi tubes. Most of this fluid mixes with the pressurized fluid to be recirculated around the bottom of the tool.

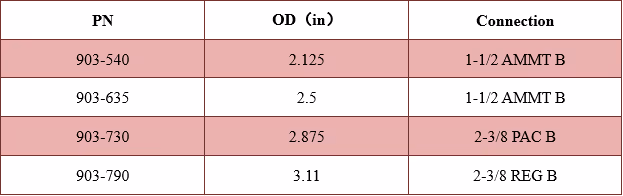

TECHNICAL DATA

Venturi Junk Basket Technical Data Excel

For additional sizes or further information please CONTACT US
