Electric Pitching Device Controlled Remotely
11st October 2025

The pitching device controlled remotely is used for multiple drop ball construction under high-pressure well conditions. Can be used in the fracturing temporary blocking ball drop construction process. This pitching can safely release the ball in remote control mode, and can safely and efficiently complete multiple temporary blocking ball drop construction.

This pitching can safely release the ball in remote control mode, and can safely and efficiently complete multiple temporary blocking ball drop construction.

The power supply methods for the electric actuator include DC 24V or AC 220V. When choosing DC 24V battery power supply, each pitching devices needs to be equipped with a DC 24V battery for power supply to ensure sufficient energy for the electric actuator to complete the ball dropping operation.

The pitching device controlled remotely is used for multiple drop ball construction under high-pressure well conditions. Can be used in the fracturing temporary blocking ball drop construction process. This pitching can safely release the ball in remote control mode, and can safely and efficiently complete multiple temporary blocking ball drop construction.

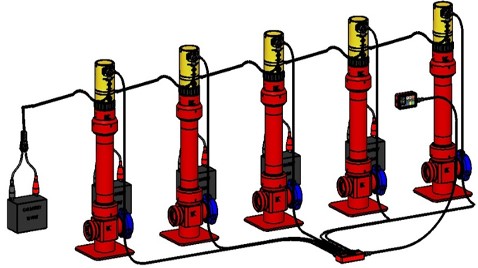

When multiple pitching devices are connected in parallel, each operation can control one pitching device to perform the dropping action or each operation can control multiple pitching devices to perform the dropping simultaneously.

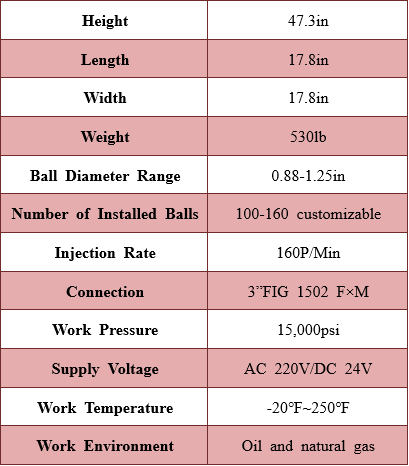

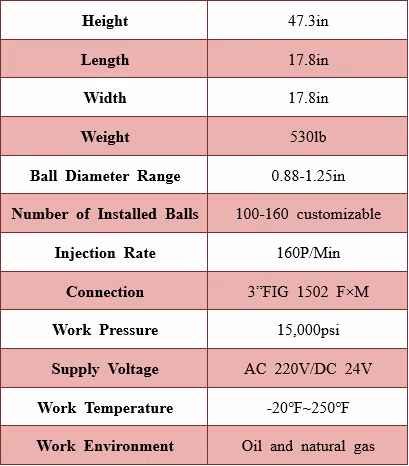

TECHNICAL DATA

The pitching device controlled remotely is equipped with an electric driven actuator, which is remotely driven through the control cabinet to complete flip of the internal ball holder, When the ball rotates to the drop channel hole, it is smoothly drop under the action of the fluid;A counting device is installed on the pitching device, and the number of balls dropped can be displayed on the control cabinet display.

Other specifications can be customized.  CONTACT US
