ball check valve.The ball check valve is used for the operation of coiled tubing and provides reverse pressure.

Ball Check Valve

FEATURES & BENEFITS:

·Double ball seal structure to provide reliable
sealing;
‍
·Corrosion-resistant sealing ball,and
cemented carbide ball seat to cope with various complex working conditions;
‍
·Metal seal is used between the ball and the ball seat, which is corrosion-resistant.

REQUEST A QUOTE
The twin flapper check valve is a standard coiled tubing string component. It provides a means of preventing the back flow of well fluids into the coiled tubing. The design of the twin flapper check valve incorporates a dual sealing system in each flapper assembly for increased safety. A non-stick seal provides the primary low pressure seal, while at higher pressure the flapper seals into a metal-to-metal arrangement. Maximum flow area through the flapper cartridges reduces unnecessary back pressure on the surface pumps. The flow path through the flapper cartridges does not restrict the passage of balls or darts if required during operations such as cementing.

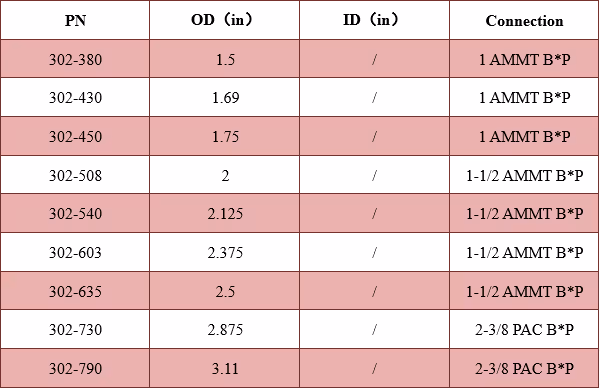

TECHNICAL DATA

Ball Check Valve Technical Data Excel
