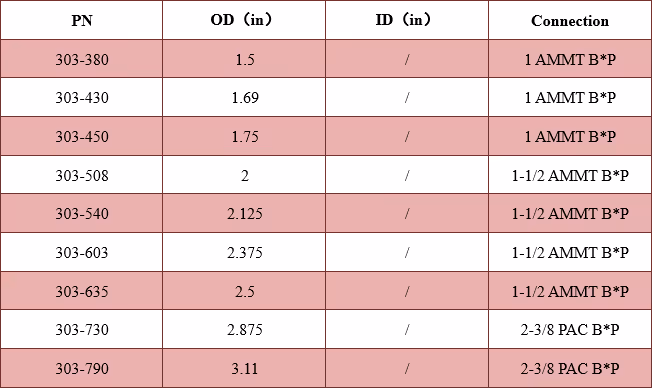

ball check valve.The ball check valve is used for the operation of coiled tubing and provides reverse pressure.

Dart Check Valve

FEATURES & BENEFITS:

·Double dart seal structure to provide reliable
sealing;
‍
·Tapered metal seals for hermetically seals;
‍
·The dart with a guide mechanism to ensure the return of the spring and work reliably.

REQUEST A QUOTE

The twin flapper check valve is a standard coiled tubing string
component. It provides a means of preventing the back flow of well
fluids into the coiled tubing.
The design of the twin flapper check valve incorporates a dual sealing system in each flapper assembly for increased safety. A non-stick seal provides the primary low pressure seal, while at higher pressure the flapper seals into a metal-to-metal arrangement.
Maximum flow area through the flapper cartridges reduces unnecessary back pressure on the surface pumps. The flow path through the flapper cartridges does not restrict the passage of balls or darts if required during operations such as cementing.

TECHNICAL DATA

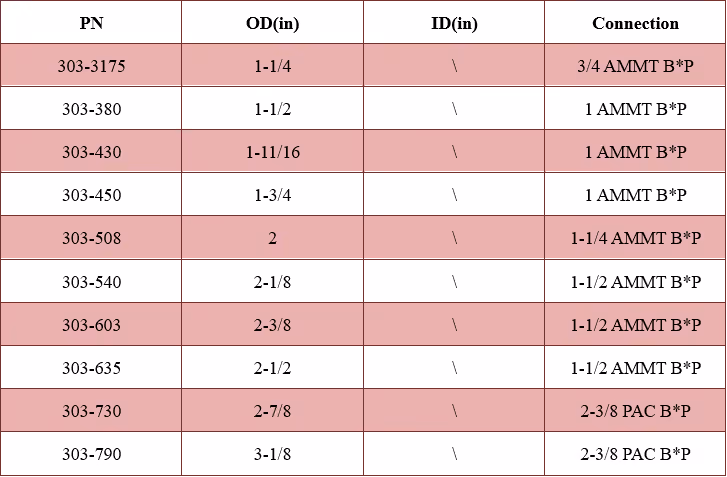

Dart Check Valve Technical Data Excel
