The double flapper check valve is a standard coiled tubing string component. It provides a means of preventing the back flow of well fluids into the coiled tubing.

Double Flapper Check Valve

FEATURES & BENEFITS:

·Double flapper and dual sealing in each
flapper cartridge (low pressure seat/seal and high pressure full metal-to-metal seat/seal);
‍
·The flapper made of corrosion-resistant
materials can cope with various complex
working conditions.

REQUEST A QUOTE

The twin flapper check valve is a standard coiled tubing string
component. It provides a means of preventing the back flow of well
fluids into the coiled tubing.
The design of the twin flapper check valve incorporates a dual sealing system in each flapper assembly for increased safety. A non-stick seal provides the primary low pressure seal, while at higher pressure the flapper seals into a metal-to-metal arrangement.
Maximum flow area through the flapper cartridges reduces unnecessary back pressure on the surface pumps. The flow path through the flapper cartridges does not restrict the passage of balls or darts if required during operations such as cementing.

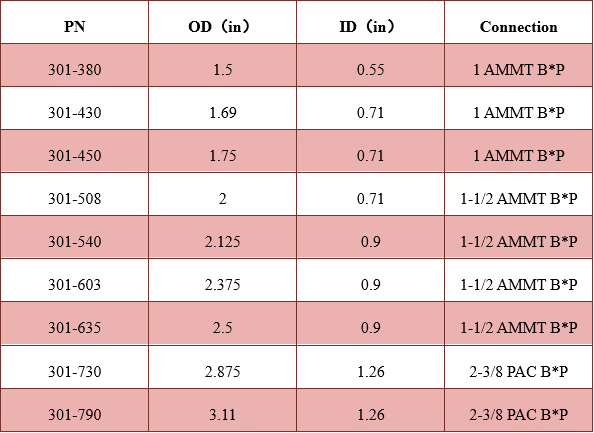

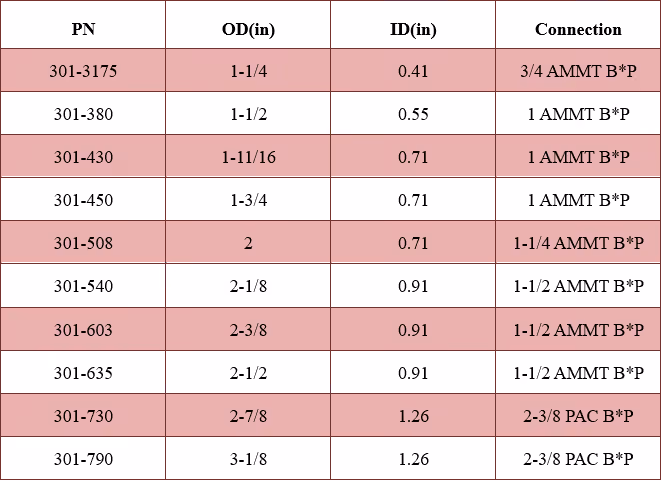

TECHNICAL DATA

Double Flapper Check Valve Technical Data Excel
