The double flapper check valve is a standard coiled tubing string component. It provides a means of preventing the back flow of well fluids into the coiled tubing.

Double Flapper Check Valve with Lock-Out Sleeve

FEATURES & BENEFITS:

·The flapper check valve is in a forced opening state during the well entry process;
‍
·In the locked out position,the flapper is protected;
‍
·Dropping ball to perform as a downhole
safety barrier.

REQUEST A QUOTE

The twin flapper check valve is a standard coiled tubing string
component. It provides a means of preventing the back flow of well
fluids into the coiled tubing.
The design of the twin flapper check valve incorporates a dual sealing system in each flapper assembly for increased safety. A non-stick seal provides the primary low pressure seal, while at higher pressure the flapper seals into a metal-to-metal arrangement.
Maximum flow area through the flapper cartridges reduces unnecessary back pressure on the surface pumps. The flow path through the flapper cartridges does not restrict the passage of balls or darts if required during operations such as cementing.

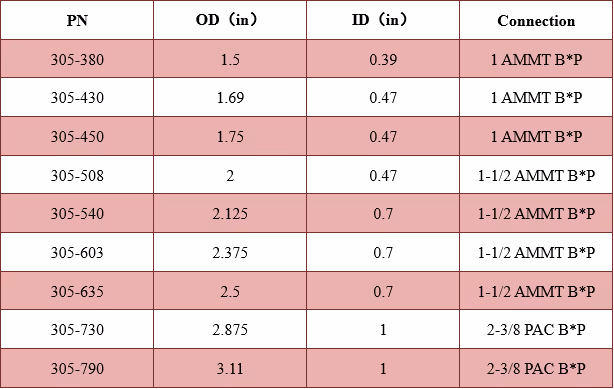

TECHNICAL DATA

Double Flapper Check Valve with Lock-Out Sleeve Technical Data Excel
