Heavy Duty Hydraulic Disconnect is used for drilling and grinding of ultra long horizontal sections of coiled tubing, it can cope with more complex working conditions and harsh conditions.

Heavy Duty Hydraulic Disconnect(Burst Disc)

FEATURES & BENEFITS:

·The overall length saving of approximately 26%;

·The high torque capability increase 40% compared to common hydraulic release;

·Releasing can be achieved through drop ball.

REQUEST A QUOTE
The heavy duty hydraulic disconnect (HDHD) allows the tool string to detach at a predetermined point via the deployment of a suitable drop/trip ball through the coiled tubing. The drop ball locates on a piston sleeve, creating sufficient back pressure to shear the pins and disconnect the tool. When this happens, the piston sleeve pushes the tool apart to ensure a clean disconnect, and circulation is immediately returned to the tool string, providing a surface indication of a positive disconnect. All piston sleeves and drop balls are returned to the surface, leaving a standard GS internal fish neck for retrieval purposes.

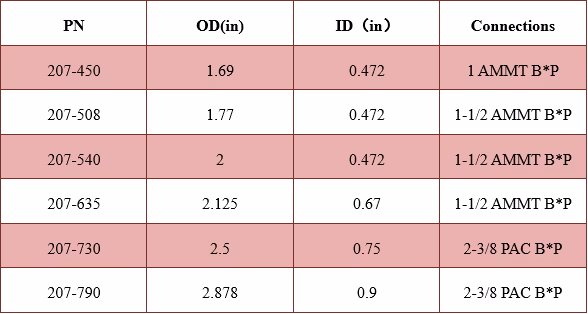

TECHNICAL DATA

Heavy Duty Hydraulic Disconnect Technical Data Excel
