The poppet check valve is used to extrude cement operations through coiled tubing and provide reliable reverse pressure.

Back-Pressure Valve

FEATURES & BENEFITS:

·Ball seal structure to provide reliable sealing;
‍
·It is made of acid-resistant materials. The internal steel balls, ball seats and springs are all made of acid-resistant materials.

REQUEST A QUOTE
The twin flapper check valve is a standard coiled tubing string component. It provides a means of preventing the back flow of well fluids into the coiled tubing. The design of the twin flapper check valve incorporates a dual sealing system in each flapper assembly for increased safety. A non-stick seal provides the primary low pressure seal, while at higher pressure the flapper seals into a metal-to-metal arrangement. Maximum flow area through the flapper cartridges reduces unnecessary back pressure on the surface pumps. The flow path through the flapper cartridges does not restrict the passage of balls or darts if required during operations such as cementing.

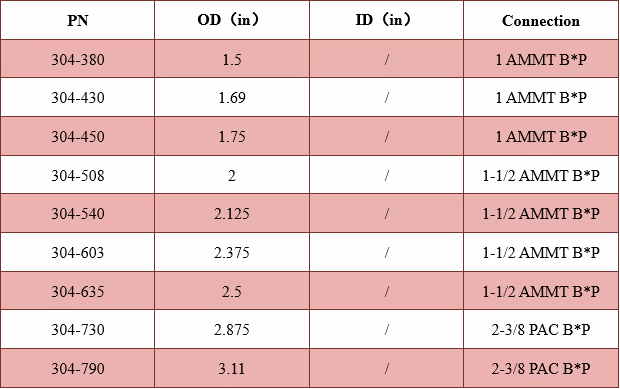

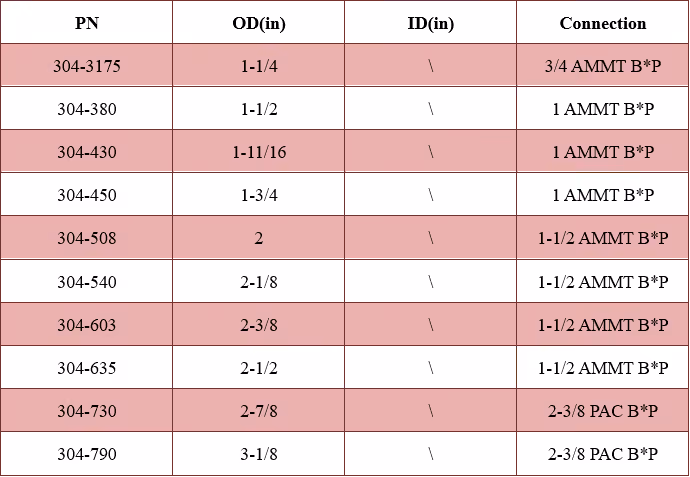

TECHNICAL DATA
